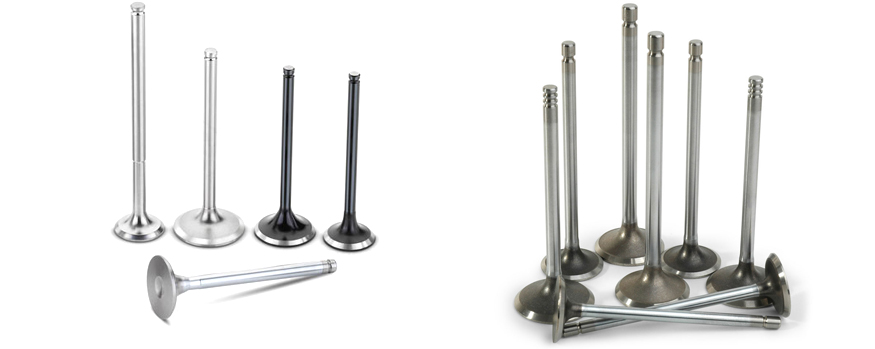

The Geara International offers a wide range of aftermarket and OEM quality engine valves for internal combustion engines and has the capacity and capability to supply high performance engine valves according to OE specifications, custom or upgraded specifications to suite customer's market needs.
From the most basic definitions and up to advance metallic composition and finish grades, The Geara International provides its customers with aftermarket engine valves at the highest quality possible, affordable prices and strong lead time.
The Geara International engine valves are made from a wide range of standard materials as well as specialty materials such as low carbon steel, martensitic & austenitic grades of valve steels and super alloys like inconel steel, nimonic steel etc.
We also offer various configurations, special coatings and treatments to enhance engine valve performance and durability.
Dimension | Range (in mm) |
---|---|
Stem Dia. | 5 to 13 |
Head Dia. | 20 to 60 |
Overall Length | 30 to 225 |
70000 pieces per month
SAE | BS | JS | Wr. No. | C | Si | Mn | Ni | Cr | N |
---|---|---|---|---|---|---|---|---|---|
SIL 1 | EN 52 | SUH 1 | 1.4718 | 0.40- | 30.0- | 0.60 | 0.60 | 7.50- | |
0.50 | 3.50 | max. | max. | 9.50 | |||||
SILXB | EN59 | 1.4747 | 0.075- | 1.75- | 0.20- | 19.0- | 19.0- | 0.15- | |
0.85 | 2.50 | 0.60 | 21.0 | 21.0 | 0.20 | ||||
-- | -- | SUH11 | -- | 0.45- | 1.00- | 0.60 | 7.50- | 7.50- | |
0.55 | 2.00 | max. | 9.50 | 9.50 | |||||
EV-12 | 21-2N | -- | 1.4875 | 0.50- | 0.08- | 1.50- | 19.25- | 19.25- | 0.20 |
0.60 | 0.25 | 2.75 | 21.50 | 21.50 | 0.40 | ||||
EV-8 | 21-4N | SUH35 | 1.4871 | 0.48- | 0.35 | 3.25- | 20.00- | 20.00- | 0.35- |
0.58 | max. | 4.50 | 22.00 | 22.00 | 0.45 | ||||
EV-15 | 23-8N | -- | -- | 0.28- | 0.50- | 7.00- | 22.00- | 22.00- | 0.25- |
0.38 | 1.00 | 9.00 | 24.00 | 24.00 | 0.40 | ||||
EV-14 | 21.12N | SUH37 | -- | 0.15- | 1.00 | 10.00- | 20.50 | 20.50 | 0.15- |
0.25 | max. | 12.00 | 22.50 | 22.50 | 0.30 |
